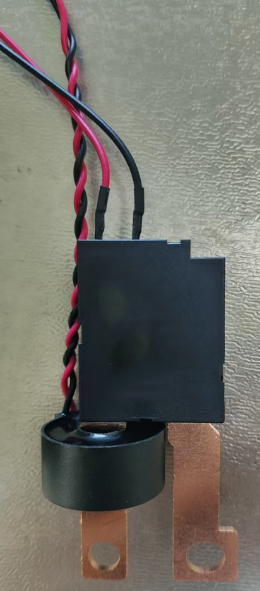

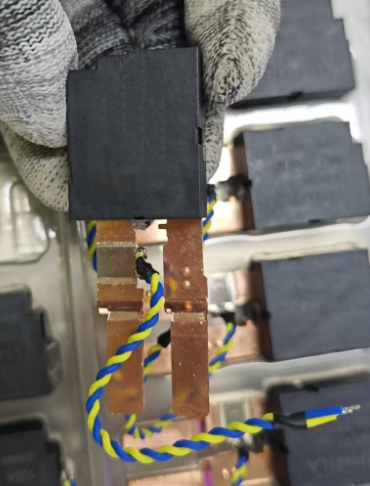

SH615-80-12-C102-01 Magnetic Latching Relay with CT
SH615-80-12-C102-01 Magnetic Latching Relay with CT
- OSWELL
- CHINA
- 10-20 DAY
- 50K
SH615-80-12-C102-01 80A Single Relay,Relay is an automatic switching component with isolation function, widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment, is one of the most important control components.
Contact Form: 1B Operate (Default Form)
Contact Material: AgSnO2
Contact Resistance: ≤2 mΩ（1A/6VDC）
Switching Current: 80A;
Switching Voltage: 250VAC max
Switching power: 20000VA max
Dielectric Strength: 4kV/1min (between coil and contacts)
RoHS Compliance
SH615-80-12-C102-01
Switching Current: 80A
Switching Voltage: 250VAC
12VDC Double Coil
Contact Form: 1B Operate
Contact Resistance：2mΩ
Compliant RoHS
CT: CT102W-C1,80A

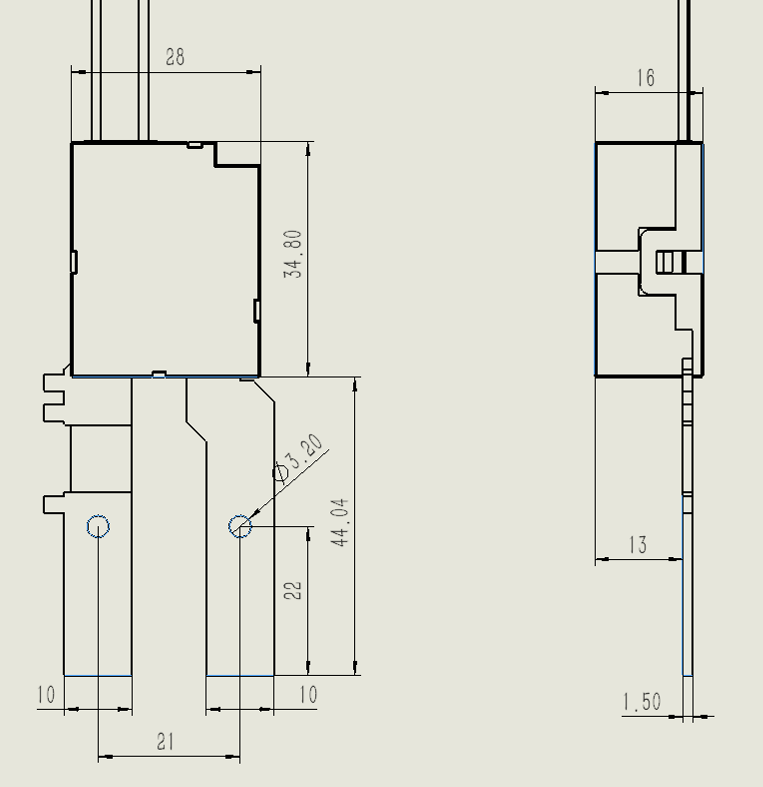

Dimensions
