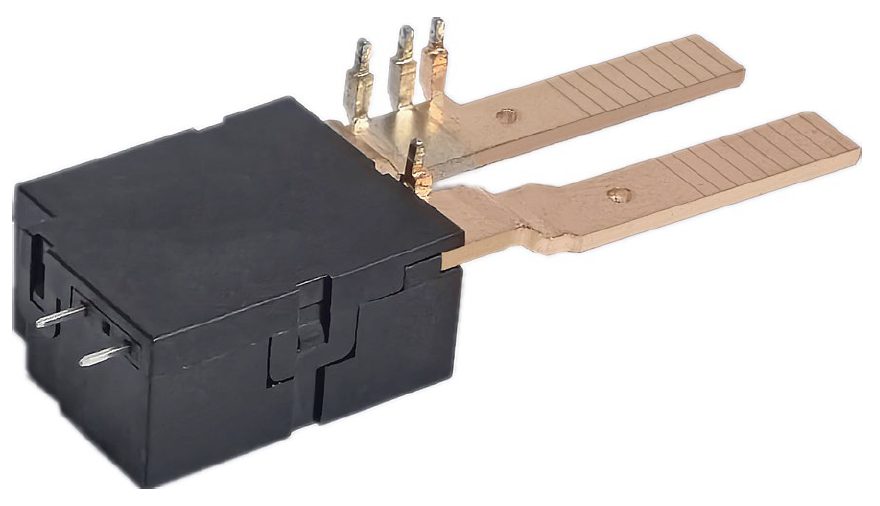

SH618-120-12DT2 120A Magnetic Latching Relay
- OSWELL
- CHINA
- 10-20 DAY
- 50K
SH618-120-12DT2 120A Single Relay,Relay is an automatic switching component with isolation function, widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment, is one of the most important control components.
Contact Form:1B Operate
Contact Material: AgSnO2
Contact Resistance: ≤2 mΩ（1A/6VDC）
Switching Current: 120A;
Switching Voltage: 250VAC max
Switching power: 30000VA max
Dielectric Strength: 4kV/1min (between coil and contacts)
RoHS Compliance
SH618-120-12DT2
Switching Current: 120A
Switching Voltage: 250VAC
12VDC Double Coil
Contact Form: 1B Operate
Contact Resistance：2mΩ
Compliant RoHS
Characteristics
AMBIENT TEMP. | -40℃～+70℃ | |
VIBRATION RESISTANCE | 10-55Hz, 0.5mm (Double Amplitude) | |
SHOCK RESISTANCE | 98m/s2 11ms | |
RELATIVE HUMIDITY | 45%~85% | |
INSULATION RESISTANCE | 1000 MΩ(500VDC) | |
DIELECTRIC STRENGTH | BETWEEN CONTACTS | 1750 VAC 50/60Hz (1 minute) |
BETWEEN CONTACT & COIL | 4000 VAC 50/60Hz (1 minute) | |
Electrical Life | ≥1ⅹ104OPS | |
Mechanical Life | ≥5ⅹ105OPS | |
Dimensions (mm) | 43.2×33.2×22 | |
PICK-UP TIME (At rated Voltage): ≤50ms | ||
RELEASE TIME (At rated Voltage): ≤50ms | ||
Bounce Time: ≤2ms | ||
Construction: DUST protected | ||
